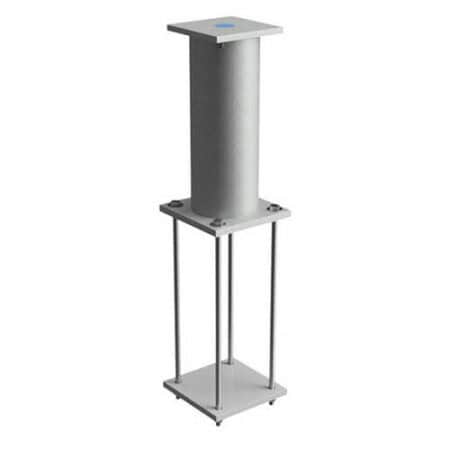

Pro-Bel Davit base 600 series wrap around for davit arm

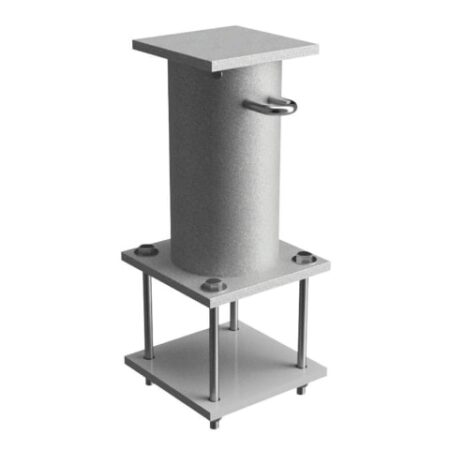

600 series wrap around davit base with a U-bar
600 series window washing davit base with wrap around

Davit Base – 600 Series – Wrap Around

Download the Permanent Roof Anchor Brochure to review specifications, load ratings, and installation details.

Product size variations are listed below.

For project-specific guidance or system design support, contact our team.

Downloads
  1. PDF - Marketing Detail
  2. DWG - Marketing Detail (available soon)
Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Height  Beam Width Beam Depth Add Ins Application
FA-DB6-23204A-1812S 18″ 8″   9-12″ None
FA-DB6-23204B-1812S 18″ 10″   9-12″ None
FA-DB6-23204C-1812S 18″ 12″   9-12″ None
FA-DB6-23214A-1812S 18″ 8″   9-12″ U-Bar
FA-DB6-23214B-1812S 18″ 10″   9-12″ U-Bar
FA-DB6-23214C-1812S 18″ 12″   9-12″ U-Bar
FA-DB6-23204A-2412S 24″ 8″   9-12″ None
FA-DB6-23204B-2412S 24″ 10″   9-12″ None
FA-DB6-23204C-2412S 24″ 12″   9-12″ None
FA-DB6-23214A-2412S 24″ 8″   9-12″ U-Bar
FA-DB6-23214B-2412S 24″ 10″   9-12″ U-Bar
FA-DB6-23214C-2412S 24″ 12″   9-12″ U-Bar
FA-DB6-23204A-0812S 8″ 8″   9-12″ None Recessed
FA-DB6-23204B-0812S 8″ 10″   9-12″ None Recessed
FA-DB6-23204C-0812S 8″ 12″   9-12″ None Recessed
FA-DB6-23214A-0812S 8″ 8″   9-12″ U-Bar Recessed
FA-DB6-23214B-0812S 8″ 10″   9-12″ U-Bar Recessed
FA-DB6-23214C-0812S 8″ 12″   9-12″ U-Bar Recessed
