Pro-Bel Davit Base 600 Series Cast in Place for Davit Arm
CAST-IN-PLACE_ PRO-BEL 600 SERIES DAVIT BASE ON A WHITE BACKGROUND

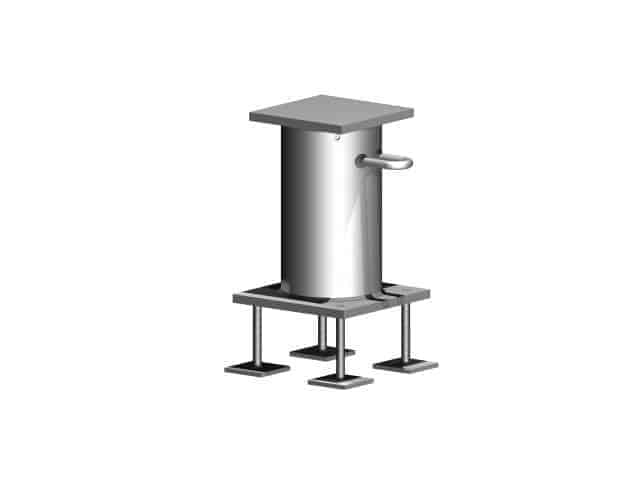

CATE IN PLACE__WITH U-BAR_PRO-BEL_600 SERIES DAVIT BASE

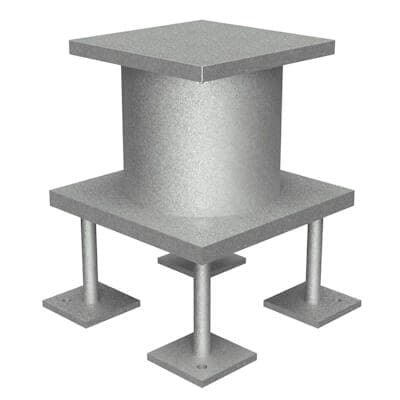

Davit Base – 600 Series – Cast In Place

Download our Davit Systems Brochure here for more information.

See Product Size Variations below.

For further inquiry on this product, please contact us at 1 (800) 461 0575

Downloads
  1. PDF - Marketing Detail
  2. DWG - Marketing Detail (available soon)
Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Height Embed Depth Slab Thk. Min. Add Ins Application
FA-DB6-23208-18 18″  6-3/8″ 8″ None
FA-DB6-23218-18 18″  6-3/8″ 8″ U-Bar
EF-FA-DB6-23218-24-01 24″  11-3/8″ 13″ U-Bar
EF-FA-DB6-23218-24-02 24″  9-3/8″ 11″ U-Bar
FA-DB6-23208-24 24″  6-3/8″ 8″ None
FA-DB6-23208-24-01 24″  5-5/8″ 7″ None
FA-DB6-23218-24 24″  6-3/8″ 8″ U-Bar
FA-DB6-23108-06 6″  6-3/8″ 8″ None Recessed
FA-DB6-23208-06 6″  6-3/8″ 8″ None Recessed
FA-DB6-23218-06-01 6″  6-3/8″ 8″ U-Bar Recessed
EF-FA-DB6-23208-08 8″  6-3/8″ 8″ None Recessed
EF-FA-DB6-23218-08 8″  6-3/8″ 8″ U-Bar Recessed
