Roof Anchors – Cast In Place – Single Stud

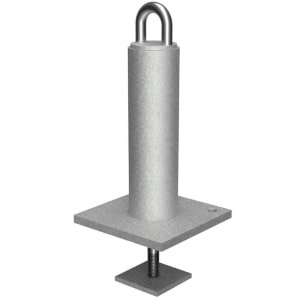

Pro-Bel’s cast-in-place single-stud roof anchor is designed for permanent anchorage in concrete roof structures. Offered in 12- and 15-inch standard heights, this economical configuration supports 3-1/2 inch roof flashing and provides an alternative to four-stud anchors where the required finished height does not exceed 15 inches.
Download the Permanent Roof Anchor Brochure to review specifications, load ratings, and installation details.
Product size variations are listed below.
For project-specific guidance or system design support, contact our team.
Description
Features
- Available in standard 12-inch and 15-inch single-stud anchor heights
- Designed to accommodate 3-1/2 inch roof flashing configurations
- Conventional flashing may be used when the anchor base plate is completely embedded and sits flush with the concrete
- Offers a more economical configuration than a comparable four-stud anchor at the same finished height
- Single-stud designs are limited to 15 inches in height, with taller applications requiring a four-stud configuration
System Details
Designed as a cast-in-place single-stud anchorage solution for concrete roof construction where finished anchor heights do not exceed 15 inches.
Product Size Chart
Below is a chart of our standard sizes. More are available upon enquiry.
| Model No. | Anchor Height | Slab Thickness Min. | Embed Depth | Flashing Type | Flashing Height |
| EF-FA-PBE74-00A1-0406S | 4″ | 6″ | 5-1/4″ | ||
| EF-FA-PBE74-00A1-0506S | 5″ | 6″ | 5-1/4″ | ||
| EF-FA-PBE74-00A1-0606S | 6″ | 6″ | 5-1/4″ | ||
| EF-FA-PBE74-00A1-0706S | 7″ | 6″ | 5-1/4″ | ||
| EF-FA-PBE74-00A1-0806S | 8″ | 6″ | 5-1/4″ | ||
| EF-FA-PBE74-00A1-0906S | 9″ | 6″ | 5-1/4″ | ||
| EF-FA-PBE74-00A1-1006S | 10″ | 6″ | 5-1/4″ |
