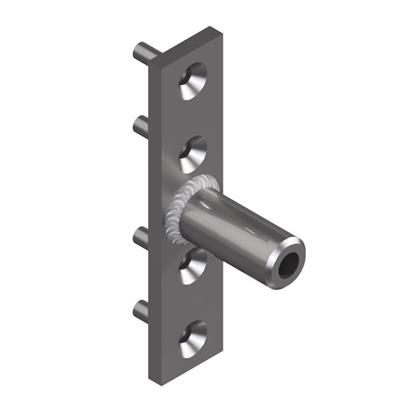

Bolt-to-mullion rectangle intermittent stabilization anchor

Intermittent Stabilization Anchors – Bolt to Mullion – Rectangle

  • Detent Pin usually will be provided by others.
  • The button is bolted to mullion using 1/4 inches diameter Hex Washer Head Self-Drilling Screws (4 screws).
  • The maximum capacity is 600 lbs in any direction (factored load).
  • Spring-loaded detent pin sold separately.

Download our Stabilization Systems Brochure here for more information.

See Product Size Variations below.

For further inquiry on this product, please contact us at 1 (800) 461 0575

Downloads
  1. PDF - Marketing Detail
  2. DWG - Marketing Detail
Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Screw Length Plate Size Screw Type Total Length Capacity
EF-FA-STB-RDP112A1-02-01 1″ 1-1/8″ x 5″ 1/4″ Flat HD Countersunk 2″ 600lbs
EF-SA-STB-RDP112A-0225 1″  1″ x 5″ 1/4″ Hex HD. Self Drilling 2-1/4″ 600lbs
FA-STB-RDP112A1-02 1″  1″ x 5″ 1/4″ Hex HD. Self Drilling 2″ 600lbs
FA-STB-RDP112A4-02 4″  1″ x 5″ 1/4″ Hex HD. Self Drilling 2″ 600lbs
