Intermittent Stabilization Anchors – Adhesive

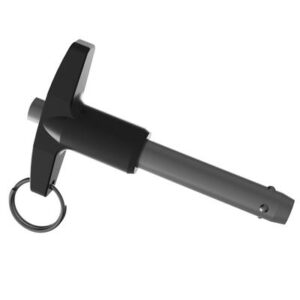

  • Detent Pin usually will be provided by others.
  • This is for retrofit application.
  • Wall thickness must be 6 inches thick in order to have a Minimum stud embedment depth of 5 inches.
  • The maximum capacity is 600 lbs in any direction (factored load).

Download our Stabilization Systems Brochure here for more information.

See Product Size Variations below.

For further inquiry on this product, please contact us at 1 (800) 461 0575

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Total Length Embedment Depth Slab Thickness Min. Capacity Extension Length
EF-FA-STB-RDX1714-085A 8-1/2″ 4″ 5″ 600lbs 4-1/2″
EF-FA-STB-RDX1714HS-24A 24″ 5″ 6″ 600lbs 19″
FA-STB-RDA1712-05A 5″ 5″ 6″ 600lbs 0
FA-STB-RDX1712-055A 5-1/2″ 5″ 6″ 600lbs 1/2″
FA-STB-RDX1712-0725A 7-1/4″ 5″ 6″ 600lbs 2-1/4″
FA-STB-RDX1712-075A 7-1/2″ 5″ 6″ 600lbs 2-1/2″
FA-STB-RDX1712-07A 7″ 5″ 6″ 600lbs 2″
FA-STB-RDX1712-085A 8-1/2″ 5″ 6″ 600lbs 3-1/2″
FA-STB-RDX1712-08A 8″ 5″ 6″ 600lbs 3″
FA-STB-RDX1714-095A 9-1/2″ 5″ 6″ 600lbs 4-1/2″
FA-STB-RDX1714-09A 9″ 5″ 6″ 600lbs 4″
FA-STB-RDX1714-105A 10-1/2″ 5″ 6″ 600lbs 5-1/2″
FA-STB-RDX1714-10A 10″ 5″ 6″ 600lbs 5″
FA-STB-RDX1714-1125A 11-1/4″ 5″ 6″ 600lbs 6-1/4″
FA-STB-RDX1714-11A 11″ 5″ 6″ 600lbs 6″
FA-STB-RDX1716-115A 11-1/2″ 5″ 6″ 600lbs 6-1/2″
FA-STB-RDX1716-125A 12-1/2″ 5″ 6″ 600lbs 7-1/2″
FA-STB-RDX1716-12A 12″ 5″ 6″ 600lbs 7″
FA-STB-RDX1716-135A 13-1/2″ 5″ 6″ 600lbs 8-1/2″
FA-STB-RDX1716-13A 13″ 5″ 6″ 600lbs 8″
FA-STB-RDX1716-14A 14″ 5″ 6″ 600lbs 9″
FA-STB-RDX1718-15A 15″ 5″ 6″ 600lbs 10″
FA-STB-RDX1718-18A 18″ 5″ 6″ 600lbs 13″
