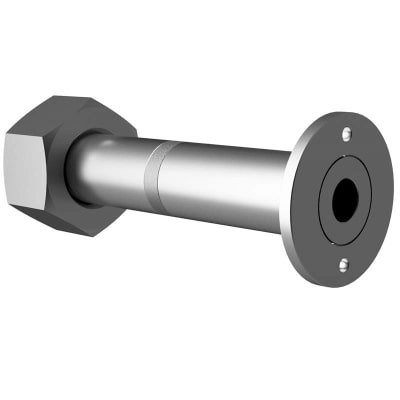

Intermittent Stabilization Anchors – Cast in Place Flush Mounted

  • Detent Pin usually will be provided by others.
  • Flush with a concrete wall.
  • Wall must be at least 6 inches thick in order to have a Minimum stud embedment depth is 5 inches.
  • The maximum capacity is 600 lbs in any direction (factored load).
  • Spring-loaded detent pin sold separately.
  • ISAs (buttons) are used to stabilize a platform, to prevent movement on the building facade.

Download our Stabilization Systems Brochure here for more information.

See Product Size Variations below.


Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Embedment Depth Slab Thickness Min. Capacity
FA-STB-FGRD1312-04 4″ 5″ 600lbs
FA-STB-RDN1312-04 4″ 5″ 600lbs
