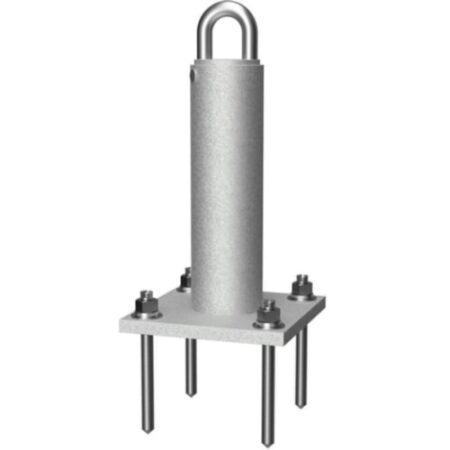

Roof Anchor – Adhesive

  • The slab thickness must be at least 6 inches thick in order to have the minimum stud embedment depth of 5″ with the use of (HILTI) HIT-HY 200-A adhesive

Download our Safety and Tie Back Anchors Brochure here for more information.

See Product Size Variations below.

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Anchor Height  Slab Thickness Min.  Embed Depth Min. Add Ins Flashing Type Flashing Height Epoxy Type
FA-PBE78-00A4-1205S1 12″ 6″ 5″ None HY-200A 2 part epoxy
FA-PBE78-00A4-1205S1-FL1 12″ 6″ 5″ Flashing conventional 8″ HY-200A 2 part epoxy
FA-PBE78-00A4-1205S1-FL6 12″ 6″ 5″ Flashing inverted 8″ HY-200A 2 part epoxy
EF-FA-PBE78-00HH4K-150312S1 15″ 4″ 3-1/2″ None HY-200A 2 part epoxy
EF-FA-PBE78-00U4-150334S1 15″ 5″ 3-3/4″ None HY-200A 2 part epoxy
FA-PBE78-00A4-1505S1 15″ 6″ 5″ None HY-200A 2 part epoxy
FA-PBE78-00A4-1505S1-FL1 15″ 6″ 5″ Flashing conventional 8″ HY-200A 2 part epoxy
FA-PBE78-00A4-1505S1-FL6 15″ 6″ 5″ Flashing inverted 8″ HY-200A 2 part epoxy
EF-FA-PBE78-00U4-1804S1 18″ 5″ 4″ None HY-200A 2 part epoxy
FA-PBE78-00A4-1805S1 18″ 6″ 5″ None HY-200A 2 part epoxy
FA-PBE78-00A4-1805S1-FL1 18″ 6″ 5″ Flashing conventional 8″ HY-200A 2 part epoxy
FA-PBE78-00A4-1805S1-FL2 18″ 6″ 5″ Flashing conventional 11″ HY-200A 2 part epoxy
FA-PBE78-00A4-1805S1-FL6 18″ 6″ 5″ Flashing inverted 8″ HY-200A 2 part epoxy
FA-PBE78-00A4-1805S1-FL7 18″ 6″ 5″ Flashing inverted 11″ HY-200A 2 part epoxy
