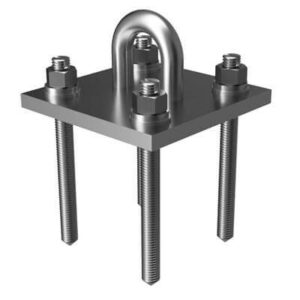

Wall Anchor – Cast in Place with Extension
- Extension wall anchors are designed to facilitate the presence of insulation or other materials on top of the concrete in walls.
- Extension wall anchors accommodate different insulation thicknesses.
- Note: recommended 1″ protrusion past the finished wall.
Download the Permanent Roof Anchor Brochure to review specifications, load ratings, and installation details.
Product size variations are listed below.
For project-specific guidance or system design support, contact our team.
Description
Product Size Chart
Below is a chart of our standard sizes. More are available upon enquiry.
| Model No. | Extension Length | Embed Depth | Stud Length |
| FA-PB59SP45-0306S1 | 3″ | 6″ | 11″ |
| FA-PB59SP45-0406S1 | 4″ | 6″ | 12″ |
| FA-PB59SP45-0506S1 | 5″ | 6″ | 13″ |
| FA-PB59SP45-0606S1 | 6″ | 6″ | 14″ |
