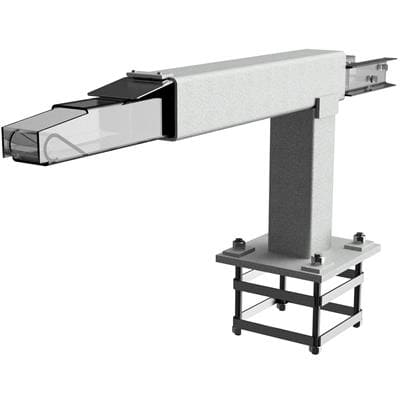

Cast-In-Cage horizontal rigging sleeve with a single post, meant for window washing and fall protection solutions
Cast-in-cage horizontal rigging sleeve with two posts for installation in concrete

Horizontal Rigging Sleeve – Cast-In-Cage

  • all rigging sleeves are made to order to suit each project’s specific conditions.
  • 2 posts will be required when the reach exceeds 78″

Download our Rigging Sleeves Brochure here for more information.

See Product Size Variations below.

For further inquiry on this product, please contact us at 1 (800) 461 0575

Downloads
  1. PDF - Equipment Detail
  2. DWG - Equipment Detail
Category:

Description

Product Size Chart

Below is a chart of our standard sizes for our rigging sleeve with one post. For information regarding size variations of our 2 post sleeves, please contact us.

Model No. Inside Length Post Height Fixed Sleeve size Inner Sleeve size Add-In Max. Reach
EF-FA-RSH55131-016-59-01 16-1/2″ 59″ 5″ x 5″ 3 1/2″ x 3 1/2″ No Hinge Cap 78″
EF-FA-RSH55131-028-18-01 28-1/2″ 18″ 5″ x 5″ 4″ x 4″ Hinge Cap 78″
EF-FA-RSH55131-028-21 28-1/2″ 21″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-028-24 28-1/2″ 24″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-028-42 28-1/2″ 42″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-029-505 29″ 50-1/2″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-030-06375 30″ 6-3/8″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-030-24 30″ 24″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-032-26 32-1/2″ 26″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-0325-24-01 32-1/2″ 24″ 5″ x 5″ 4″ x 4″ Hinge Cap 78″
EF-FA-RSH55131-0375-0875 37-1/2″ 8-3/4″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-0375-24 37-1/2″ 24″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-038-09 38-1/2″ 9″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-039-21 39″ 21″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-039-24 39″ 24″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-0445-15 44-1/2″ 15″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-049-4175 49″ 41-3/4″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-0505-09 50-1/2″ 9″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-051-6575 51″ 65-3/4″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH55131-054-505 54″ 50-1/2″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
EF-FA-RSH75131-0395-24-01 39-1/2″ 24″ 7″ x 5″ 4″ x 4″ Hinge Cap 78″
FA-RSH55131-025-30-01 25″ 30″ 5″ x 5″ 4″ x 4″ Hinge Cap 78″
FA-RSH55131-028-15 28-1/2″ 15″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
FA-RSH55131-032-15 32-1/2″ 15″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
FA-RSH55131-032-20 32-1/2″ 20″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
FA-RSH55131-032-30 32-1/2″ 30″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
FA-RSH55131-036-15 36″ 15″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
FA-RSH55131-038-15 38-1/2″ 15″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
FA-RSH55131-0415-30 41-1/2″ 30″ 5″ x 5″ 3 1/2″ x 3 1/2″ Hinge Cap 78″
