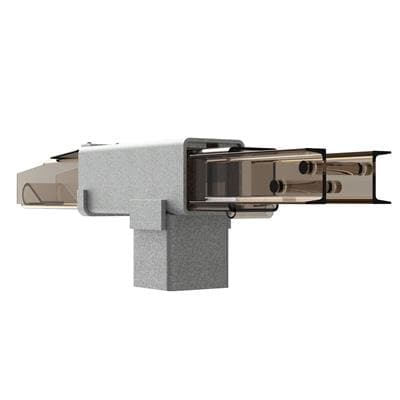

Horizontal Rigging Sleeve – Welded
- 2 posts will be required when exceeding the max reach listed in the charts below.
Download our Rigging Sleeves Brochure to review specifications, load ratings, and installation details.
Product size variations are listed below.
For project-specific guidance or system design support, contact our team.
Description
Product Size Chart
Below are charts of our standard sizes. Please contact us for sizing information for our 2 post sleeves.
Horizontal Rigging Sleeve – Welded – 1 Post
| Model No. | Max. Reach (Support to Suspension) | Height | Inside Length | Fixed Sleeve Size | Inner Sleeve Size | Add-In | Remark |
| EF-FA-RSH55151-014-03-01 | 78″ | 3″ | 14″ | 5″ x 5″ | 4″ x 4″ | Hinge Cap | LONG REACH |
| EF-FA-RSH55151-014-03-02 | 78″ | 3″ | 14″ | 5″ x 5″ | 4″ x 4″ | Hinge Cap | LONG REACH |
| EF-FA-RSH55151-0225-085 | 48-1/2″ | 8-1/2″ | 22-1/2″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |

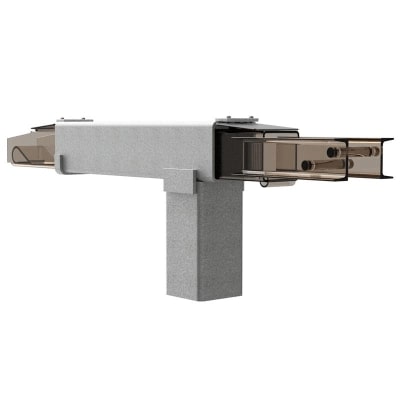

| EF-FA-RSH55151-024-10-01 | 78″ | 10″ | 24″ | 5″ x 5″ | 4″ x 4″ | Two Hinge Caps | LONG REACH |
| EF-FA-RSH55151-027-21 | 53″ | 21″ | 27″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| EF-FA-RSH55151-029-18 | 55″ | 18″ | 29″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| EF-FA-RSH55151-030-15 | 56″ | 15″ | 30″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| EF-FA-RSH55151-0335-15 | 59-1/2″ | 15″ | 33-1/2″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| EF-FA-RSH55151-0385-24 | 64-1/2″ | 24″ | 38-1/2″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| EF-FA-RSH55151-0385-30 | 78″ | 30″ | 38-1/2″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| EF-FA-RSH55151-039-21 | 65″ | 21″ | 39″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| EF-FA-RSH55151-051-26 | 78″ | 26″ | 51″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| EF-FA-RSH55151-055-15 | 78″ | 15″ | 55″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| EF-FA-RSH555-010-03 | 34″ | 3″ | 10″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| FA-RSH55151-021-30 | 30″ | 21″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | ||
| FA-RSH55151-028-15 | 54-1/2″ | 15″ | 28-1/2″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| FA-RSH55151-032-15 | 58-1/2″ | 15″ | 32-1/2″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| FA-RSH55151-036-15 | 62″ | 15″ | 36″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap | |
| FA-RSH55151-038-15 | 64-1/2″ | 15″ | 38-1/2″ | 5″ x 5″ | 3-1/2″ x 3-1/2″ | Hinge Cap |
Horizontal Rigging Sleeve – Welded – No Post
| Model No. | Length | Sleeve Size | Add-In |
| EF-FA-RSH555-007-01 | 7″ | 5″ x 5″ | No Hinge Cap |
| EF-FA-RSH555-010 | 10″ | 5″ x 5″ | Hinge Cap |
| EF-FA-RSH555-0305 | 30-1/2″ | 5″ x 5″ | Hinge Cap |
| FA-RSH555-010-01 | 10″ | 5″ x 5″ | No Hinge Cap |
| FA-RSH555-047 | 47″ | 5″ x 5″ | Hinge Cap |
