Cast In Place Vertical Rigging Sleeve

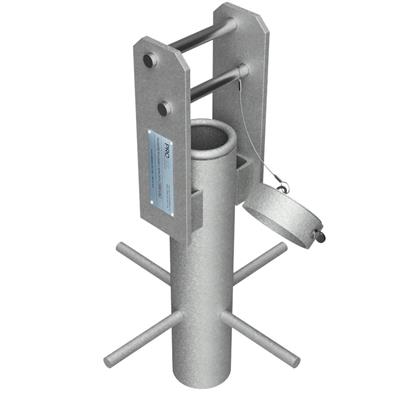

A vertical rigging sleeve with a cast-in-place base

Vertical Rigging Sleeve – Cast-In-Place

Download our Rigging Sleeves Brochure here for more information.

See Product Size Variations below.

For further inquiry on this product, please contact us at (800) 461 0575

Downloads
  1. PDF - Equipment Detail
  2. DWG - Equipment Detail - 1 Bar
  3. DWG - Equipment Detail - 2 Bars
Category:

Description

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Head Upper Length Lower Length Total Length
EF-FA-RSV4023-018-12 Double Bars 12″ 6″ 18″
EF-FA-RSV4023-023-12 Double Bars 12″ 11″ 23″
EF-FA-RSV4023-025-175 Double Bars 17-1/2″ 7-1/2″ 25″
EF-FA-RSV4023-026-20 Double Bars 20″ 6″ 26″
EF-FA-RSV4023-029-18 Double Bars 18″ 11″ 29″
EF-FA-RSV4023-030-20 Double Bars 20″ 10″ 30″
EF-FA-RSV4023-031-22 Double Bars 22″ 9″ 31″
EF-FA-RSV4023-036-19 Double Bars 19″ 17″ 36″
EF-FA-RSV4023-037-22 Double Bars 22″ 15″ 37″
EF-FA-RSV4023-040-33 Double Bars 33″ 7″ 40″
EF-FA-RSV4023-042-33 Double Bars 33″ 9″ 42″
EF-FA-RSV4023-046-23 Double Bars 23″ 23″ 46″
EF-FA-RSV4023-047-27 Double Bars 27″ 20″ 47″
EF-FA-RSV4023-051-34 Double Bars 34″ 17″ 51″
EF-FA-RSV4023-059-34 Double Bars 34″ 25″ 59″
EF-FA-RSV4023-064-30 Double Bars 30″ 34″ 64″
EF-FA-RSV4023-069-23 Double Bars 23″ 46″ 69″
FA-RSV4023-016-12 Double Bars 12″ 4″ 16″
FA-RSV4023-024-20 Double Bars 20″ 4″ 24″
FA-RSV4023-035-29 Double Bars 29″ 6″ 35″
FA-RSV4023-036-30 Double Bars 30″ 6″ 36″
FA-RSV4023-0405-295 Double Bars 29-1/2″ 11″ 40-1/2″
FA-RSV4023-042-295 Double Bars 29-1/2″ 12-1/2″ 42″
FA-RSV4023-060-30 Double Bars 30″ 30″ 60″
FA-RSV4023-120-30 Double Bars 30″ 90″ 120″
EF-FA-RSV4013-025-12 Single Bar 12″ 13″ 25″
EF-FA-RSV4013-033-17 Single Bar 17″ 16″ 33″
EF-FA-RSV4013-050-24 Single Bar 24″ 26″ 50″
EF-FA-RSV4013-060-25 Single Bar 25″ 35″ 60″
FA-RSV4013-016-12 Single Bar 12″ 4″ 16″
FA-RSV4013-024-20 Single Bar 20″ 4″ 24″
FA-RSV4013-036-30 Single Bar 30″ 6″ 36″
FA-RSV4013-060-30 Single Bar 30″ 30″ 60″
FA-RSV4013-120-30 Single Bar 30″ 90″ 120″
