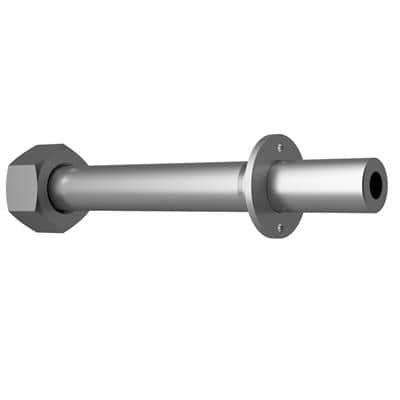

Intermittent Stabilization Anchors – Cast in Place with Extension
- Detent Pin usually will be provided by others.
- The max. extension for the stud is 3 1/2 inches for a 3/4″ diameter rod.
- This is used when there is a soffit or any other decorative system beyond the wall.
- Wall must be at least 6 inches thick in order to have a Minimum stud embedment depth is 5 inches*.
- The maximum capacity is 600 lbs in any direction (factored load).
- Spring-loaded detent pin sold separately.
Download our Stabilization Systems Brochure here for more information.
See Product Size Variations below.
Description
Product Size Chart
Below is a chart of our standard sizes. More are available upon enquiry.
Model No. | Total Length | Embedment Depth | Slab Thickness Min. | Capacity | Extension Length |
EF-FA-STB-RDX1312-06 | 6″ | 5″ | 6″ | 600lbs | 1″ |
EF-FA-STB-RDX1312-065 | 6-1/2″ | 5″ | 6″ | 600lbs | 1-1/2″ |
EF-FA-STB-RDX1312-0675 | 6-3/4″ | 5″ | 6″ | 600lbs | 1-3/4″ |
EF-FA-STB-RDX1312-07 | 7″ | 5″ | 6″ | 600lbs | 2″ |
EF-FA-STB-RDX1314-09 | 9″ | 5″ | 6″ | 600lbs | 4″ |
EF-FA-STB-RDX1314-095 | 9-1/2″ | 5″ | 6″ | 600lbs | 4-1/2″ |
EF-FA-STB-RDX1314-10 | 10″ | 5″ | 6″ | 600lbs | 5″ |
EF-FA-STB-RDX1314-1025 | 10-1/4″ | 5″ | 6″ | 600lbs | 5-1/4″ |
EF-FA-STB-RDX1314-10375 | 10-3/8″ | 5″ | 6″ | 600lbs | 5-3/8″ |
EF-FA-STB-RDX1314-105 | 10-1//2″ | 5″ | 6″ | 600lbs | 5-1/2″ |
EF-FA-STB-RDX1314-1075 | 10-3/4″ | 5″ | 6″ | 600lbs | 5-3/4″ |
EF-FA-STB-RDX1314-11 | 11″ | 5″ | 6″ | 600lbs | 6″ |
EF-FA-STB-RDX1314-11125 | 11-1/8″ | 5″ | 6″ | 600lbs | 6-1/8″ |
EF-FA-STB-RDX1316-12 | 12″ | 5″ | 6″ | 600lbs | 7″ |
EF-FA-STB-RDX1316-12375 | 12-3/8″ | 5″ | 6″ | 600lbs | 7-3/8″ |
EF-FA-STB-RDX1316-125 | 12-1/2″ | 5″ | 6″ | 600lbs | 7-1/2″ |
EF-FA-STB-RDX1316-13 | 13″ | 5″ | 6″ | 600lbs | 8″ |
EF-FA-STB-RDX1316-13250 | 13-1/4″ | 5″ | 6″ | 600lbs | 8-1/4″ |
EF-FA-STB-RDX1316-13375 | 13-3/8″ | 5″ | 6″ | 600lbs | 8-3/8″ |
EF-FA-STB-RDX1316-14 | 14″ | 5″ | 6″ | 600lbs | 9″ |
EF-FA-STB-RDX1318-15 | 15″ | 5″ | 6″ | 600lbs | 10″ |
EF-FA-STB-RDX1318-16 | 16″ | 5″ | 6″ | 600lbs | 11″ |
EF-FA-STB-RDX1318-18 | 18″ | 5″ | 6″ | 600lbs | 13″ |
FA-STB-RDX1312-08 | 8″ | 5″ | 6″ | 600lbs | 3″ |
