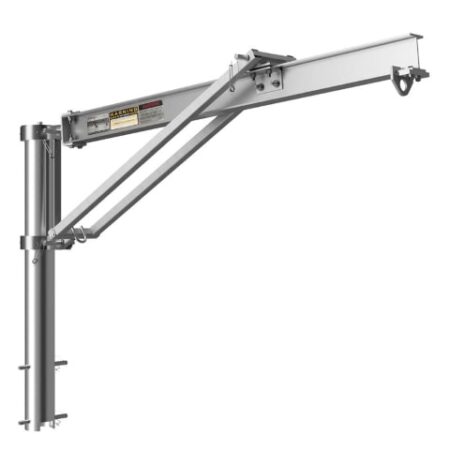

top rotation A501 Davit Arm

Davit Arm – A501

  • Top rotation davit arm with a split brace that allows trolleys to retract further for angulation of suspension lines.

Download the Permanent Roof Anchor Brochure to review specifications, load ratings, and installation details.

Product size variations are listed below.

For project-specific guidance or system design support, contact our team.

Downloads
  1. PDF - Marketing Detail
  2. DWG - Marketing Detail
Categories: ,

Description

Features

  • Top rotation davit arm designed for suspended access applications
  • Split brace design allows trolleys to retract further for improved suspension line angulation
  • Supports roof-rigged suspended platforms for exterior building maintenance
  • Available with single U-Bar and double U-Bar trolley configurations
  • Standard reach options include 6′-6″ and 8′-6″ configurations
  • Engineered for OSHA and ANSI/IWCA compliant permanent rooftop davit systems and facade access applications

System Details

Designed as part of Pro-Bel’s engineered rooftop davit systems for suspended access and exterior building maintenance applications.


Suspended Access Systems


Facade Access Applications

Product Size Chart

Below is a chart of our standard sizes. More are available upon enquiry.

Model No. Max. Reach Mast Height Type of Trolley
EF-FA-DA50111-A71A0 8′-6″ 6′-6″ Single U-Bar
EF-FA-DA50111-A790 8′-6″ 4′-0″ Single U-Bar
EF-FA-DA50111-A79A0 8′-6″ 4′-6″ Single U-Bar
EF-FA-DA501111-A730 8′-6″ 8′-0″ Double U-Bar
FA-DA50111-A300 6′-6″ 5′-0″ Single U-Bar
FA-DA50111-A310 6′-6″ 6′-0″ Single U-Bar
FA-DA50111-A320 6′-6″ 7′-0″ Single U-Bar
FA-DA50111-A700 8′-6″ 5′-0″ Single U-Bar
FA-DA50111-A710 8′-6″ 6′-0″ Single U-Bar
FA-DA50111-A720 8′-6″ 7′-0″ Single U-Bar
FA-DA501111-A300 6′-6″ 5′-0″ Double U-Bar
FA-DA501111-A310 6′-6″ 6′-0″ Double U-Bar
FA-DA501111-A320 6′-6″ 7′-0″ Double U-Bar
FA-DA501111-A700 8′-6″ 5′-0″ Double U-Bar
FA-DA501111-A710 8′-6″ 6′-0″ Double U-Bar
FA-DA501111-A720 8′-6″ 7′-0″ Double U-Bar
